QR-code laser stencil generator

Problem

QR code is a form of matrix barcode. It is now fairly common, with readers in virtually every camera-equipped smartphone either already installed, or an app store visit away.

Application via stamping, printing or attaching a sticker is easy. This is not always practical. Sometimes spray-painting with a stencil is the preferred way; e.g. when decorating textiles (whether by paint or bleach), or for urban graffiti.

QR-code generators usually produce bitmap files. These can be used for laser engraving, but not for laser cutting. Even if the edges are traced and the bitmap is converted to vectors, the result would fall apart after cutting. There are enclosed areas within enclosed areas that'd just fall out. The result, not pretty.

A solution is cutting out individual pixels, leaving spaces around. This forms a mesh with some squares removed. But alas, there seems to be no software able to do this.

Solution

Not anymore.

A piece of software was written that takes the qr-code bitmap, detects the vertical and horizontal edges, extracts the pixel values from the image, and generates the vector image, ready for cutting, in either OpenSCAD or DXF format.

Code functionality

The code uses the ImageMagick library for reading the bitmaps and decoding them into an in-memory array.

The image is read, converted to black and white, and placed to memory. Memory arrays are prepared for the row and the column. The rows and columns of the bitmap are scanned, and detected edges are set in row/column arrays. This quantizes the image, detects the pixels in the code. Optional white frame around the code is detected and discarded.

With the image quantized, the pixels of the QR code are now directly accessible.

Now, the code is scanned pixel by pixel, optionally a new white frame is generated. Pixels are optionally inverted. Each black one (or white, if inverted) is outputted as the appropriate vector code to stdout.

Output formats

• ASCII - just shows the code in text format. Useful for debugging. Can be used for machine decoding by some other code.
• SCAD - produces an OpenSCAD script. The sizes and positions are specified as variables, making further manual editing easy.
• DXF - produces a DXF file compatible with MoshiDraw software coming with the K40-III laser cutter. Can be optionally vertically inverted, to accommodate some machines that invert the y axis (0:0 coordinate can be either top left or bottom left of the machine area).

Output size specification

Output image can be specified either as its entire size (the -size option), or by specifying the width of the pixel plus the size of spacer (the -sw option).

In both cases the -sp option can and should be used to specify the spacer width. The actual spacer width should be specified to be as low as the material, laser setting, and final use allows; the value may have to be determined experimentally.

Partial output

Due to possible large size of the stencil and smaller size of affordable laser cutters, it may be needed to export only part of the code. The sub-area can be specified as the qr-code pixels. The -startx and -starty parameters specify the offset from left and top, the -countx and -county parameters specify the length horizontally and vertically. The info block will calculate the size of the exported area, but making sure it is of the right size for the materials on hand is left on the user.

Size calculator output

The dimensions of the output and pixels are displayed unless said otherwise (-q). If the image is sent to stdout, this info is sent to stderr. If image is not to be shown (-n), the info goes to stdout.

Command syntax

Options:

Example: check qr.png for size and other parameters:

Example: check qr.png for size and other parameters, see the QR code in ASCII:

Example: convert qr.png to a 15 cm square, 0.8 mm spacing, in DXF, black as cutout:

Example: convert qr.png to a 15 cm square, 0.8 mm spacing, in OpenSCAD, inverted (white as cutout), with 3-pixel frame:

Example: convert qr.png using 5.5x5.5 mm pixels, 1 mm spacing, to DXF:

Example: convert qr.png to a 25 cm square, 0.8 mm spacing, in DXF, in two parts, 25 cm wide but only 15 cm high (the height of 12 pixels was found by hand):

Example: convert qr.png using 5.5x5.5 mm pixels, 1 mm spacing, to DXF:

Use for generic bitmaps

Generic pixel art bitmaps may not have good autodetection of pixel edges. There are two mechanisms to force the right size; using -xpix/-ypix to specify the number of pixels in the image, or -xpixsize/-ypixsize for the pixels size in image pixels (this size can have decimals, to cater to rounding errors). Some idea about the pixel sizes can be gained from the debug output, -D, from the EdgeArray, EdgePos and EdgeLen lists.

Colors have to be selected sometimes. Images with too many colors can be downsampled using -quantify option. The colors then can be listed via -listcolors. The matching colors, or color ranges, can be specified for the pixel match via the -rgb option.

G-code generation for 3d printers

In some cases it is needed to draw a bitmap image from individual dots, or eventually lines. The original stencil cutting generator was found to be an excellent platform for adding this functionality.

Many tasks require deposition of a material, e.g. an ink or adhesive, to specific places on a flat surface. A dot by dot drawing with e.g. a pen or a marker is one of the possibilities. A 3d-printer can be adapted for this; the printer head is replaced with a pen or other ink depositing device, and instructed, usually using G-code, to move over the surface and touch the pen tip down wherever a dot is required to be.

The G-code generator takes the input bitmap, uses the same sub-area specifications and color separation options as the stencil generator above, and outputs raw code with the head movements.

Pecking and line-drawing

The basic operation for creating a dot on the substrate is a "peck". If the pixel has to be formed on the coordinates, the head is moved there, then lowered to the substrate and quickly retracted again. The head height can have two values; the lower one, for quicker movements, used when neighbouring pixels are created, and the higher, for longer-range movements. This provides higher speed for clusters of dots while giving height margin for longer moves.

Alternatively, the image can be drawn from lines; instead of retracting after each pixel, the head is lifted only at the end of a sequence of neighbouring pixels in a row.

The peck mode has the advantage of the tool touching the substrate only vertically, without the risk of dragging it around. This allows use of simple methods of fixing the substrate, and use of substrates that would deform under lateral forces (e.g. soft cloth). Also, no lateral forces are exerted on the tool head, allowing the use of 3d printers with flimsy frames without loss of positioning accuracy.

There are two scanning modes for the bitmap:

• line-by-line, where the image is processed by rows; the head moves in lines, scanning the image. Peck and line modes can be used, and the scanning can be left-to-right only (head moves back to left in retracted position, takes longer time) or bidirectional (head draws in both directions, but may be sensitive to backlash of the printer positioning, resulting in slight offset between even and odd lines). The -gp and -gl output modes can be used. In line mode, the drawing speed can be specified with -gfdraw <mm/min> parameter. The default scan is from top to bottom, line by line, left-to-right, with head moving quickly back to the leftmost position. A zig-zag scan, where even lines are left-to-right and odd ones are right-to-left, can be specified with -gzz option.
• nearest-neighbor, where the next pixel to process is chosen to be the nearest active pixel. This mode, -gn, is available only for pecking, but is significantly faster.

G-code specific options

The G-code output can be provided in three flavors: -gp (line-by-line "pecking"), -gn (nearest-neighbor pecking), and -gl (line-drawing). Pecking and line drawing scans the image line by line, left-to-right by default, zigzag when -gzz is specified.

Heights

The heights of the head position can be specified, in millimeters:

• -gzupfar, for the head height for longer-range movement
• -gzupnear, for the head height for moving to a neighbouring pixel
• -gzdown, for the pixel height (usually zero, but can be below for needle-piercing or above for ink spitting or laser-burning)
• -gzpark, the head height to move to after finishing the operation

Speeds

The head movement speeds can be specified, in millimeters per minute:

• -gfmove, for horizontal head movements
• -gfdraw, for the -gl mode, the line-drawing speed
• -gfup, for the upward movement
• -gfdown, for the downward movement - usually slower, to limit the impact velocity of the pen/tool tip

Custom pixel G-code

By default, the peck operation G-code consists from an instruction to go down to zero position (-gzdown) at downward speed (-gfdown), followed immediately by retraction. By default, the go-down operation is "G1 Z0.000000 F2000".

This operation can be replaced by any custom G-code, using the -gcode option. Vertical pipes can be used as command separators when multiple commands are required in a sequence (e.g. switch on a laser, dwell, switch off laser).

The -gfdown and -gzdown options are rendered irrelevant by the -gcode option.

Dimensions

Dimensions can be specified via the pixel size (-sw), total image width (-size), or DPI (-dpi). The resulting DPI, resolution and size are reported in the output.

Resolution

For more concise output code, -prec can be used to specify decimal precision for x and y coordinates. By default, it is two decimal places, which equals 10µm resolution. Higher or lower resolution can be specified as desired.

Positioning

More degrees of freedom of output positioning were required. The -offsx and -offsy options allow moving the output by an offset in millimeters. The -center option moves the output image's center to the [0,0] coordinate, for use on e.g. delta printers with zero in the center of the workspace. If used, the offsets (if specified) are added to the centered image.

-fv and -fh options allow flipping the output horizontally and vertically.

Downloads

The binary is compiled for Linux, using gcc-4.7.2

• qr2laser - binary
• qr2laser.c - source code
• Base64.h - dependency source
• Base64.cpp - dependency source

Dependency installation on Ubuntu class distros: apt install libmagickcore-6.q16hdri-dev

Compilation:

Code notes

The C is ugly. Language chosen on the basis of knowing it the best. Uses fixed memory structures to avoid pointer hell, was a scratch-an-itch solution instead of a beauty-queen code candidate. No warranty. License to be determined, something open, no idea yet what flavor.

Tests and drawbacks

Mask of the test QR code, with 8 cm square size, was cut out from a cardboard, using 12mm/s speed and 4mA current. The cutting went without a glitch, on the second pass. (On the first pass, higher current was used and the cardboard burned.) The 0.8mm of default spacer width shown to be a good compromise; enough to hold well while not enough to interfere with the paint too much.

The spray painting shown a problem inherent to stencils; the stencil did not adhere fully to the surface and the aerosol went underneath and scattered, smearing the features. Fortunately, the phone app it was tested with recognized the code well enough to decode it properly.

Two more masks (6x6 and 5x5 cm) were cut from cardboard (a box of instant porridge), using 14 mm/s and 4 mA. The results of the cutting are fairly good. More experiences were acquired with stenciling, more samples were made.

Actual tests shown gross differences in sensitivity of QR-code reading apps to the thin line grids. Some apps had no trouble reading the codes at all. Others weren't able to read almost any.

TODO

• SVG output format
• Test, photograph results
• Video of G-code output operation
• Clean the code
• Maybe add specification of laser workspace or part dimensions, calculate sub-areas from these
• More tests of the apps, a list of what worked how well

Example images for QR codes

[][][][][][][] [] [] [][][][][][][] [] [] [] [] [] [] [] [][][] [] [] [] [][][] [] [] [][][] [] [] [] [] [][][] [] [] [][][] [] [] [] [] [][][] [] [] [] [][][] [] [] [] [][][][][][][] [] [] [] [][][][][][][] [] [] [][][][][] [][][][] [][][] [] [] [] [] [][] [][][][][] [][] [] [][] [][] [][] [] [][] [] [][] [] [][] [] [][][] [] [][][] [][] [] [][] [] [] [] [] [][] [][][][][][][] [] [][][] [][][] [] [] [] [][] [][] [] [] [][][] [] [][] [][] [][][][] [][] [] [][][] [] [] [][] [] [] [][][] [] [][][][][] [] [] [] [][][] [][] [] [] [][][][][][][] [] [][][][][] [] Input bitmap dimensions: 400x400 QR code dimensions: 21x21 Total area size: 0.00 Pixel size: -0.76 Pixel spacing: 0.80 Warning: Pixel size too small (-0.761905x-0.761905 mm), limit 2.

Input bitmap dimensions: 400x400
QR code dimensions: 21x21
Total area size: 150.00
Pixel size: 6.19
Pixel spacing: 1.00

• qrtest.dxf.txt - DXF file listed

Input bitmap dimensions: 400x400
QR code dimensions: 21x21
Total area size: 100.00
Pixel size: 3.81
Pixel spacing: 1.00

• qrtest.scad.txt - SCAD file listed

Physical tests

8cm mask, overall	8cm mask	8cm mask, failed burned cut	8cm mask, stencil spraying
8cm mask, sprayed	8cm mask, sprayed	8cm mask, phone test	8cm mask, phone test
5 and 6 cm masks, cut	5 cm mask, cut	6 cm mask, cut	5 and 6 cm masks, cut

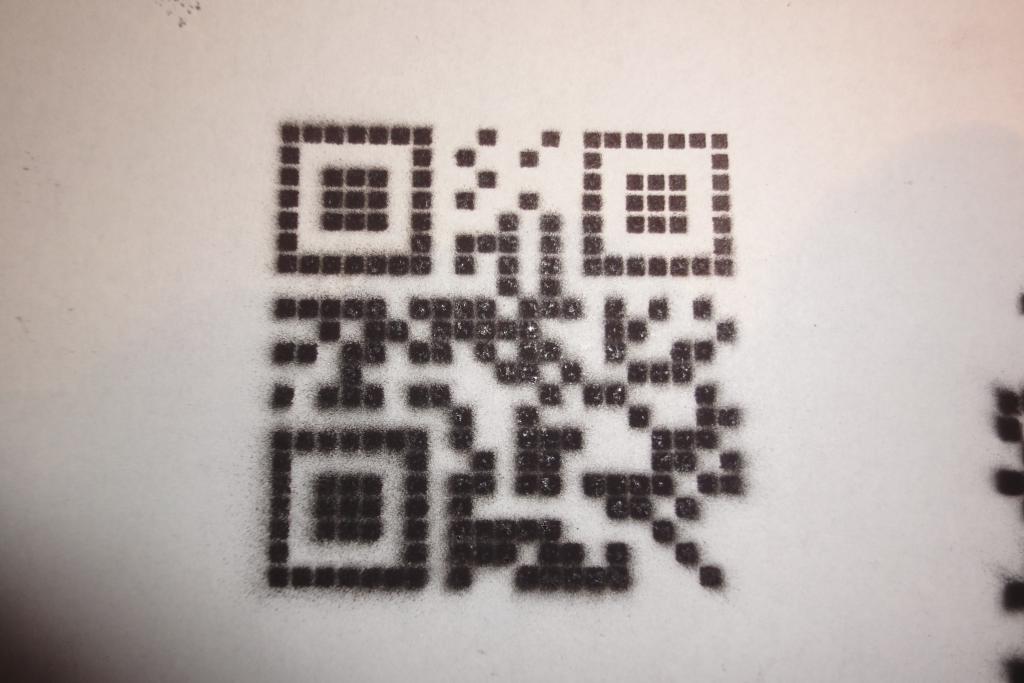

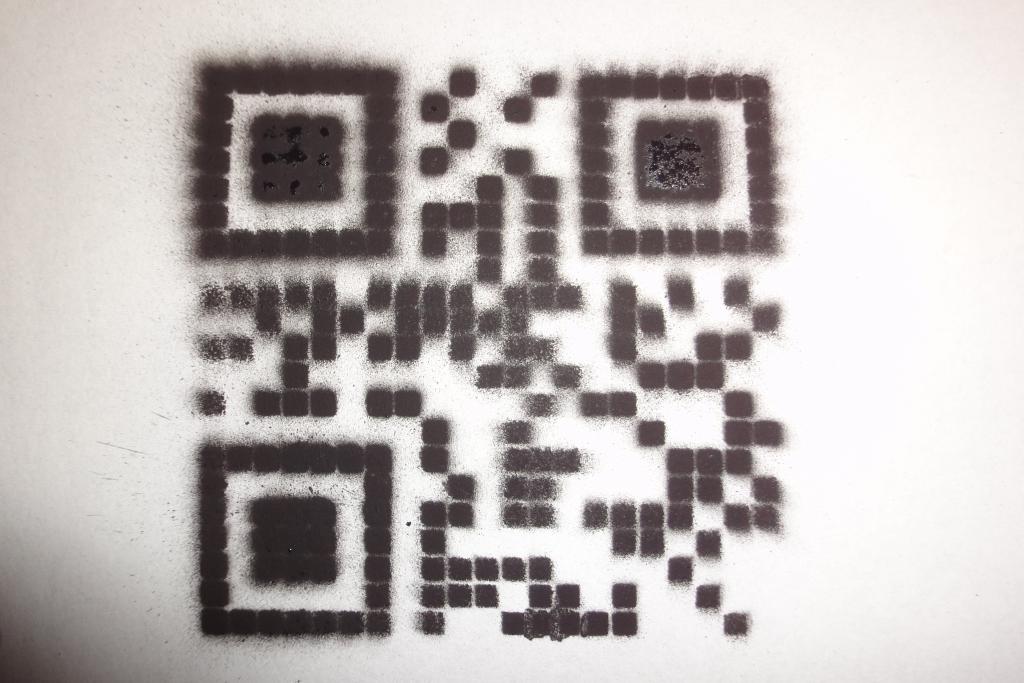

5 and 6 cm masks, spraying	5 and 6 cm stencils sprayed	6 cm stencil sprayed	5 cm stencil sprayed
5 and 6 cm stencils sprayed	6 cm stencil sprayed	5 cm stencil sprayed	5 and 6 cm stencils sprayed, with mask
